AGL Primary Connector Kits KD500 & KD510
AGL Primary Connector Kits KD500 & KD510
KD500 & KD510 are designed for a fast-and-easy watertight connection between the primary cable and the series isolating transformer. The connectors allow a rather fast mounting and assembly on site.
Technical Data

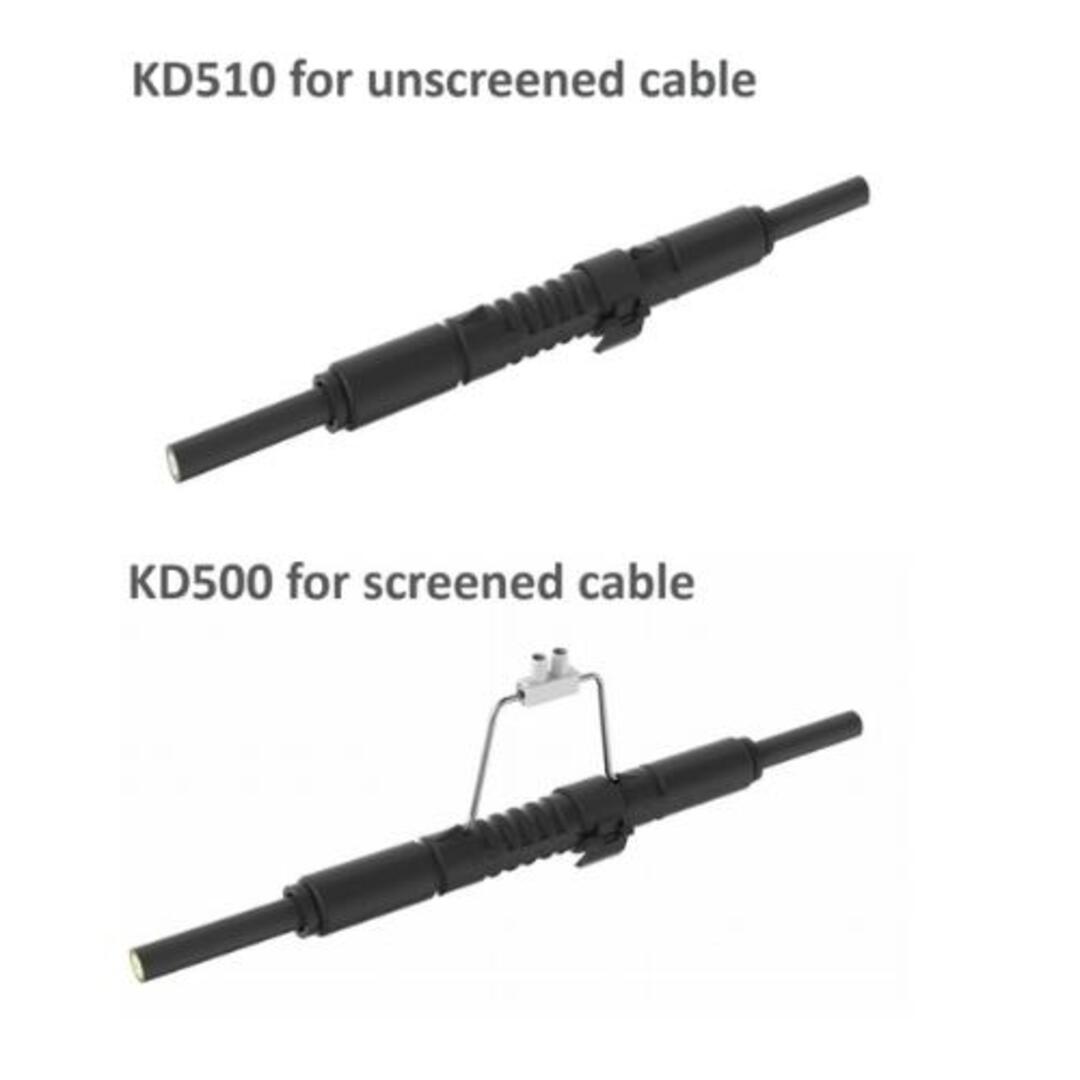

• Available for screened cables (KD500) and unscreened cables (KD510)
DOWNLOAD PDF
• Fast to install 5-10 min
• FAA certified
• Nominal rating: 25 A and 5000 V
• Superior isolation resistance by thermoplastic elastomer (TPE)
• Cable diameter 10,0 - 22,0 mm (0.393 - 0.866 inches)
• Conductor size 6 - 10 mm² (8 - 6 AWG)
• ROHS compliance with EU directive NO2002/95/EC
Features
Primary connector designs have been the industry standard for over 30 years. KD500 & KD510 are FAA certified and
fit to a wide range of cable sizes. KD primary connectors are packed and delivered in kits including all the necessary
parts for making the assembly on primary cables. Each primary connector kit contains components for a pair (a plug
and a receptacle). These silicon filled connectors fast to install and insulated screen continuity is available as an option.
