AGL Primary Connector Kits KDR600 & KDR610

AGL Primary Connector Kits KDR600 & KDR610

FAA AC 5345-47, L-823 Styles 3 and 10, Class B

Technical Data

• Superior isolation resistance by thermoplastic elastomer (TPE) • Nominal rating: 25 A and 5000 V • Cable diameter 9,0 - 19,0 mm (0.354 - 0.748 inches) • Conductor size 6 - 10 mm² (8 - 6 AWG)
• ROHS compliance with EU directive NO2002/95/EC

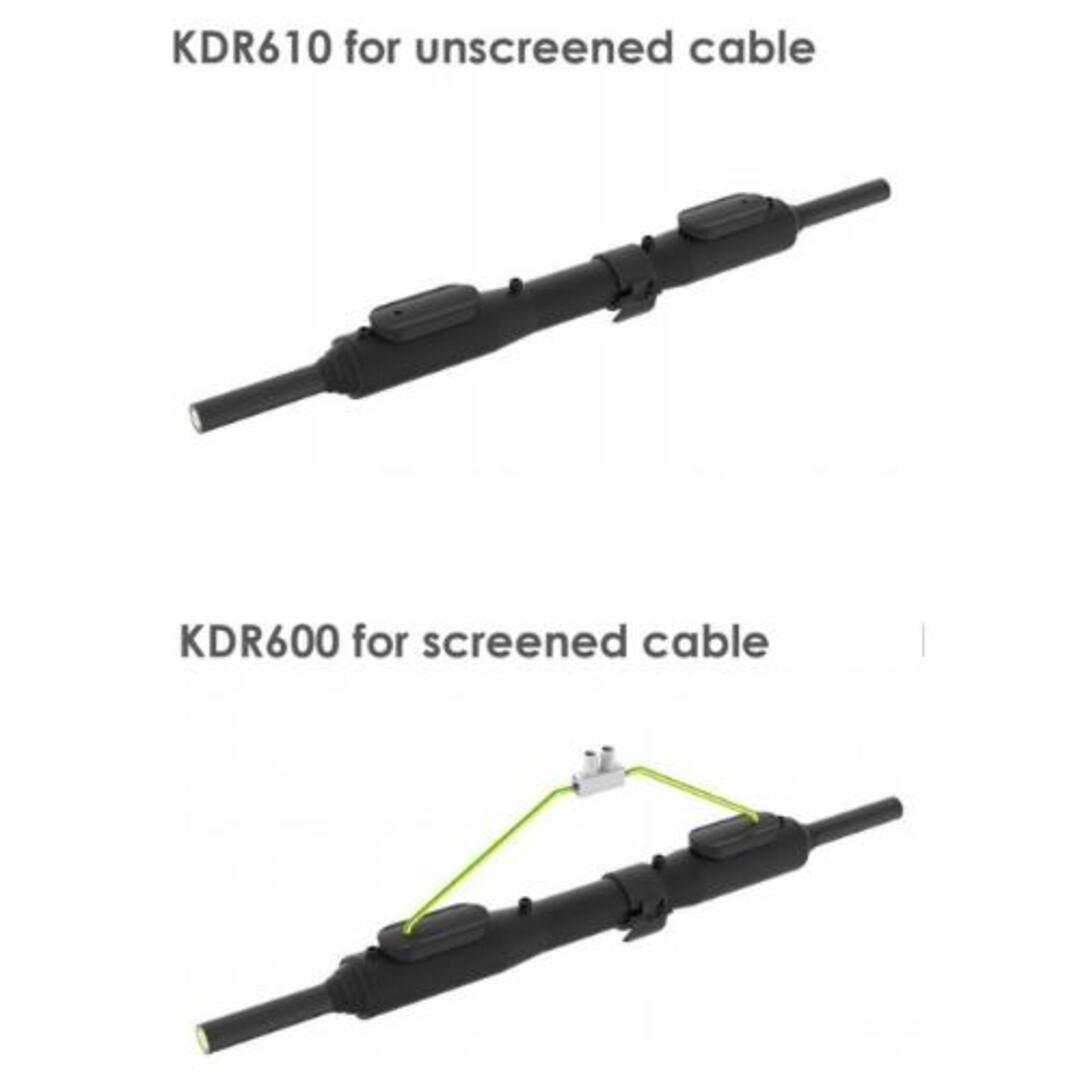

• Available for screened cables (KDR600) and unscreened cables (KDR610).

DOWNLOAD PDF

Features

KDR resin connector is designed for extreme conditions. KDR connector comes with polyurethane resin, which is poured inside the connector housing upon installation. This provides a permanent connection between connector housing and cable, which cannot be dismantled. Insulated screen continuity and epoxy resin version to high humidity environment are available on request.
