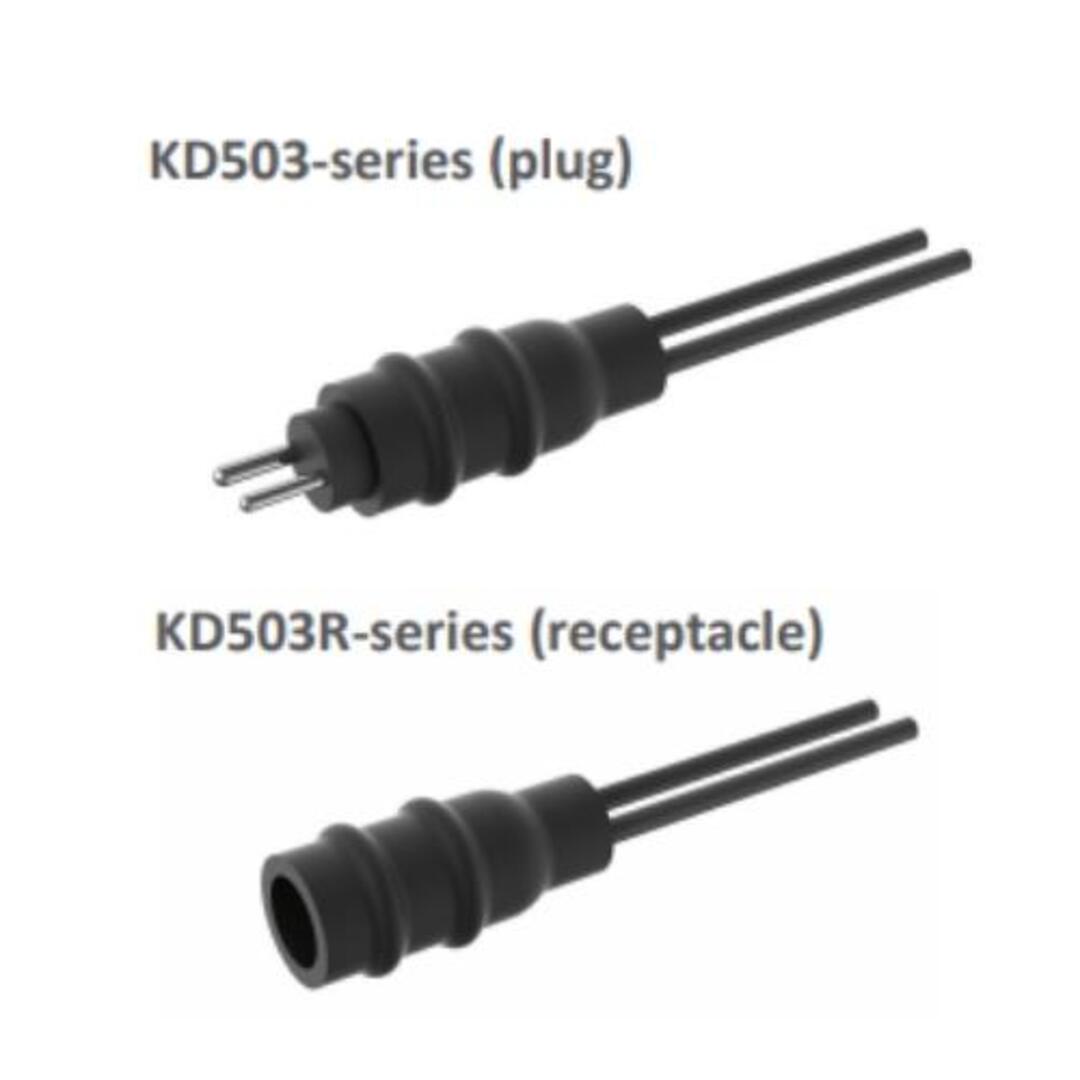

AGL Secondary Connector Kits KD503 & KD503R

AGL Secondary Connector Kits KD503 & KD503R

FAA AC 5345-26, L-823 Class B, Style 4 & 11

Technical Data

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Nominal rating: 20 A and 600 V
  • Wire diameter 2,8 - 8,0 mm (0.110 - 0.314 inches) x 2
  • Conductor size 1,5 - 6 mm2 (16 -10/8 AWG)
  • ROHS compliance with EU directive N02002/95/EC

DOWNLOAD PDF

Features

KD503 connectors have been industry requirement for over 30 years. They are designed for a fast-and-easy watertight connection between the secondary cable and the series isolating transformer. This connector is silicon and used with two single core wires. Connector is fast to install, approx, lmin. KD 503 connectors are FAA certified.

Certificates


KD SECONDARY CONNECTOR
