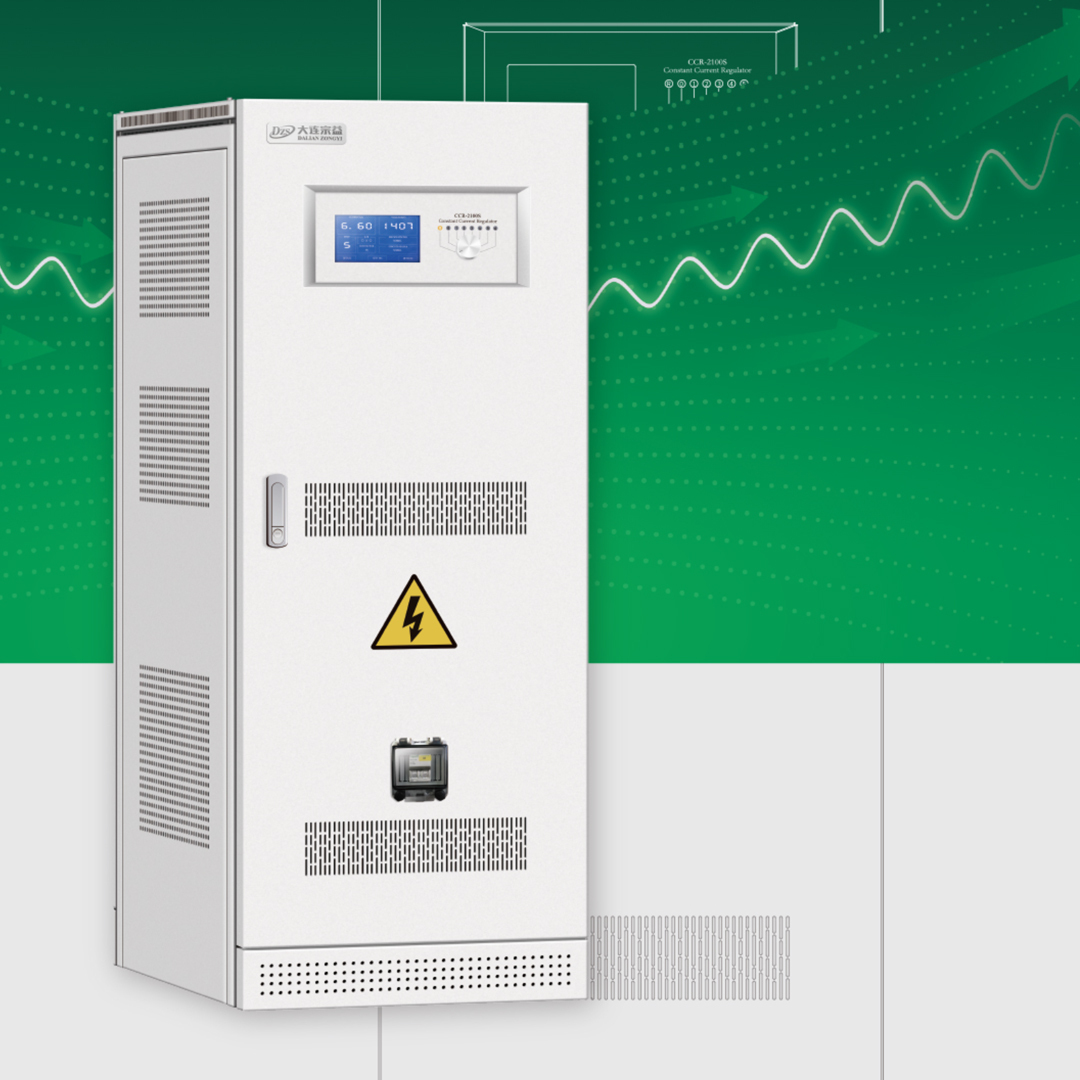

CCR-2100S Constant Current Regulator IGBT TYPE
CCR-2100S Constant Current Regulator IGBT TYPE
Technical Data
Operating Temperature: -30°C~+55°C
Humidity: 10%~95%
Protection Class: IP21
Output Power: 5-30kVA(AC 380/400V) 5-20kVA(AC220/230V)
Emission: IEC 61000-6-4
Features
- Tested by BV and proved in conformity with IEC 61822
- EU CE certified
- IGBT high frequency PWM and true sinusoidal wave output
- 32-bit high speed processor providing microsecond speed in transaction
- Up to 6 brightness steps, user adjustable output current
- 1000M high precision on-line insulation resistance measurement
- Lamp fault detection provides accurate detection of burnt lamps
- Natural cooling and no noise
- Power factor exceeding 0.99
- Perfectly suitable for loads of various characteristics
- Effectively increase life expectancy of light sources
- 7 inches full color touch screen provides rich information
- Flexible parameter settings
- Lightning arrestors at both input and output sides
- Comprehensive over current and overvoltage protection
- Various types of remote control interfaces
- Choice of 100+ airports worldwide
Compliance
- I.C.A.O. - DOC 9157 ADM Part 5
- E.A.S.A. - CS-ADR-DSN
- F.A.A. - AC 150/5345-10
- C.A.A.C – MH/T 6010
- I.E.C. – 61822 - 61820-3-2
- A.E.N.A. – DIN/DSEYN/PPT/002
