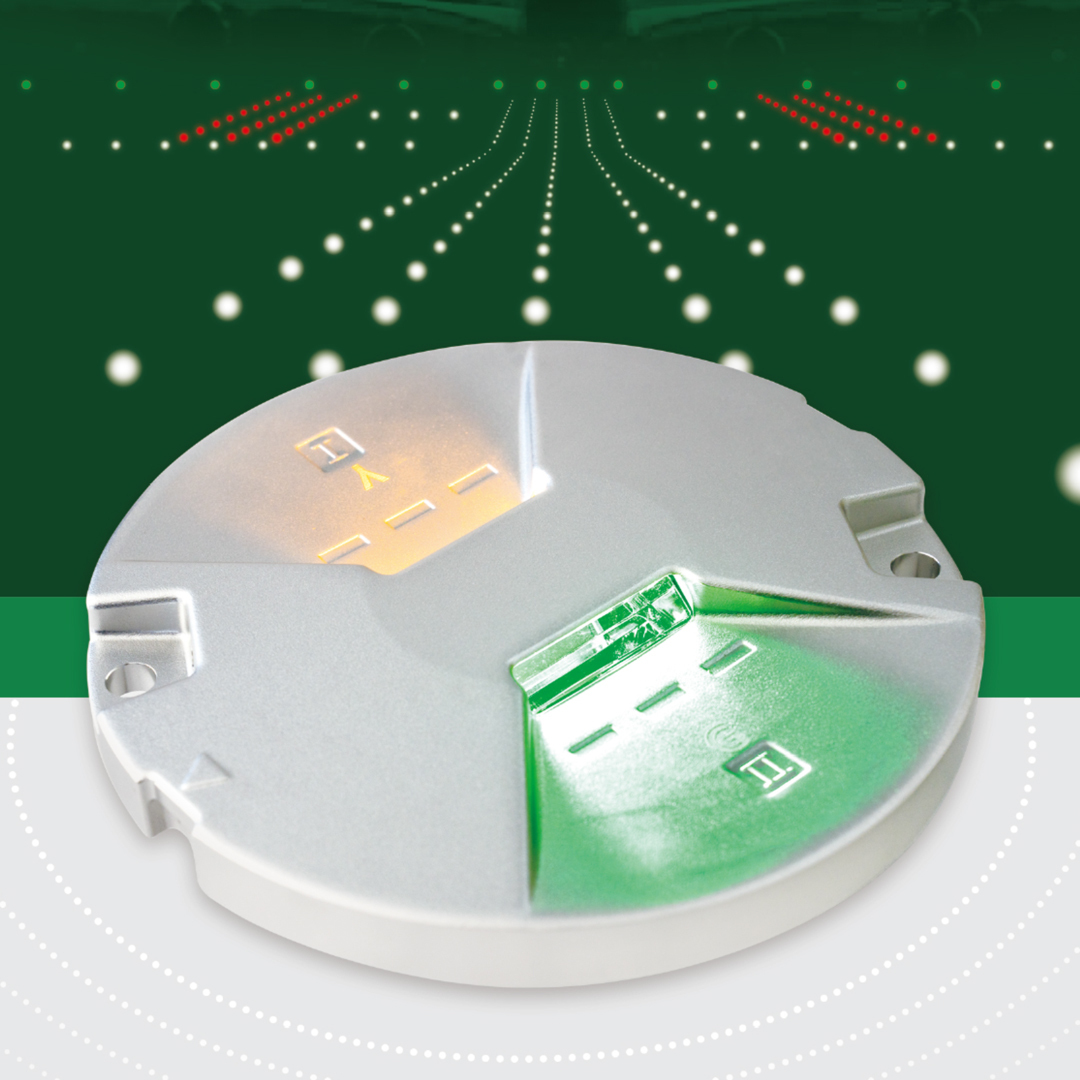

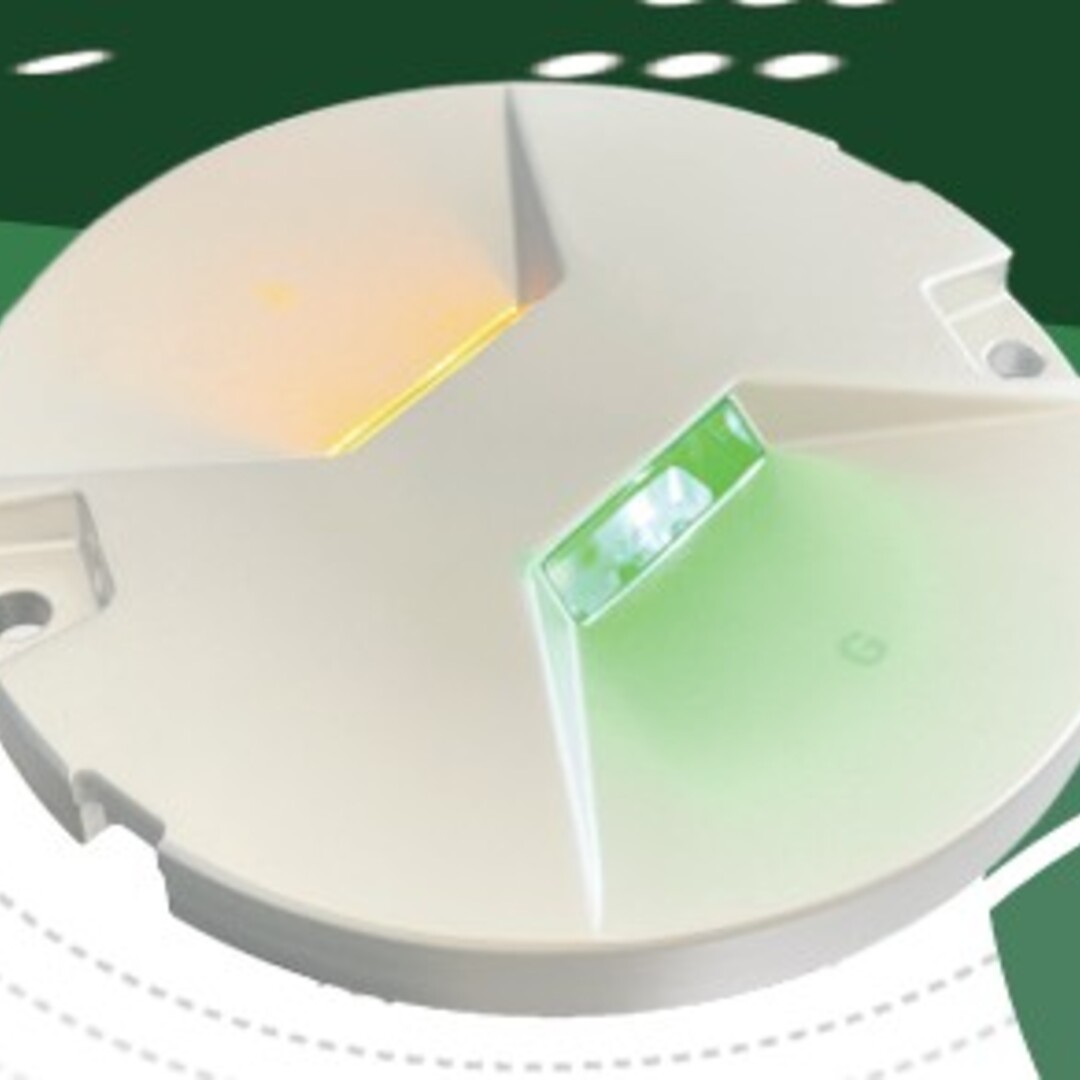

ITD series 8" LED Inset Lights
ITD series 8" LED Inset Lights
TS/IN Taxiway Centre Line-Straight Section Runway Turn Pad-Straight Section | TC/IN Taxiway Centre Line-Curved Section Runway Turn Pad-Curved Section | SBS/IN Stop Bar-Straight Section No-entry Bar-Straight Section Runway Entrance-Straight Section | SBC/I
Technical Data
Operating Temperature: - 55°C~+55°C
Humidity: 0~100%
Protection Class: IP68
Power Factor: >0.98
Connection: FAA L-823
Emission: IEC 61000-6-4
Features
- Low protrusion of 6 mm above ground level
- Adaptable to all kinds of CCRs and ILCMS systems
- PWM digital regulation providing excellent consistency of chromaticity
- Aluminum alloy forged top cover with hardened surface and corrosion resistance treatment
- Built-in surge protection
- Specially designed fail open system suitable for strong magnetism, vibration and other environments
Compliance
- I.C.A.O. - ANNEX 14 Vol 1
- E.A.S.A. - CS-ADR-DSN
- I.E.C. - TS 61827
- F.A.A. - AC 150/5345-46 - EB NO. 67
- N.A.T.O. - STANAG 3316
- A.E.N.A. - DIN/DSEYN/PPT/018
- CANADA - TP 312
- AUSTRALIA - MOS 139
- C.A.A.C – AC 137-CA-2015-01-R1
- C.A.A.C – AC 137-CA-2015-03-R1
