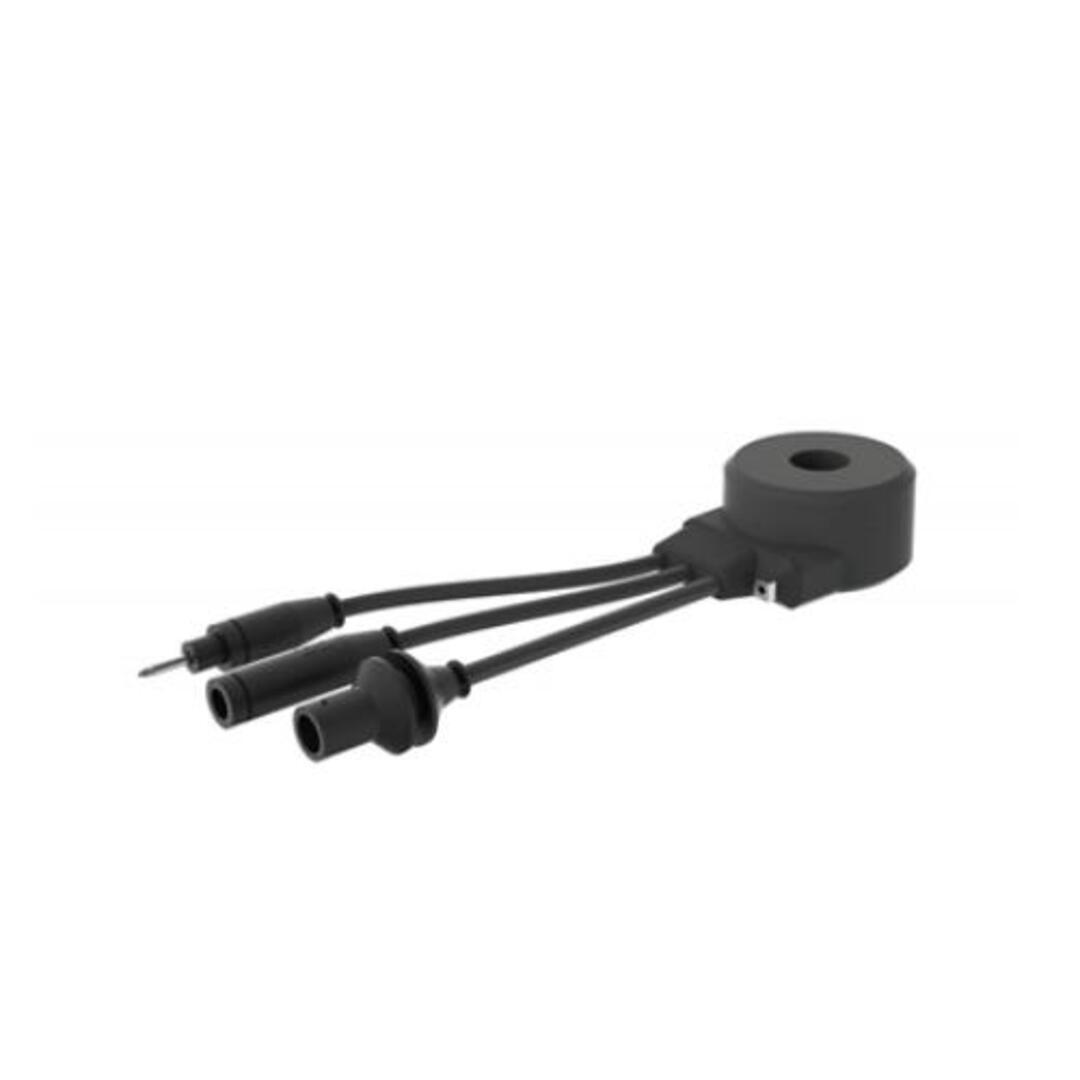

Low Leakage Transformer for Addressable Systems KR600
Low Leakage Transformer for Addressable Systems KR600
FAA AC 5345-47, L-830 / L-831, 60 Hz / 50 Hz, EN 61823
Technical Data
• Superior isolation resistance by thermoplastic elastomer (TPE)
DOWNLOAD PDF
• Optimal physical size and electrical performance of toroidal structure
• Rated power 10 - 500 W
• Rated current 6.6 A/6.6 A , other currents upon request
• Power factor > 0,97
• L (leak) 20µH - 130 µH
• L (magn) 13.0mH - 64 mH
Features
KR600 is used to supply the current in the AGL circuit and to provide a separation point between the
primary and secondary circuits. KR600 series has special design offering very low leakage inductance on
top of the common features, which support single lamp control and more advanced control and monitoring
requirements. KR600 is the most energy efficient transformer in the market due to toroidal core and low
leakage design. Transformers are certified by FAA and approved by IEC. They also comply with ICAO Annex
14 and several other national standards (MAK, CAAC).
