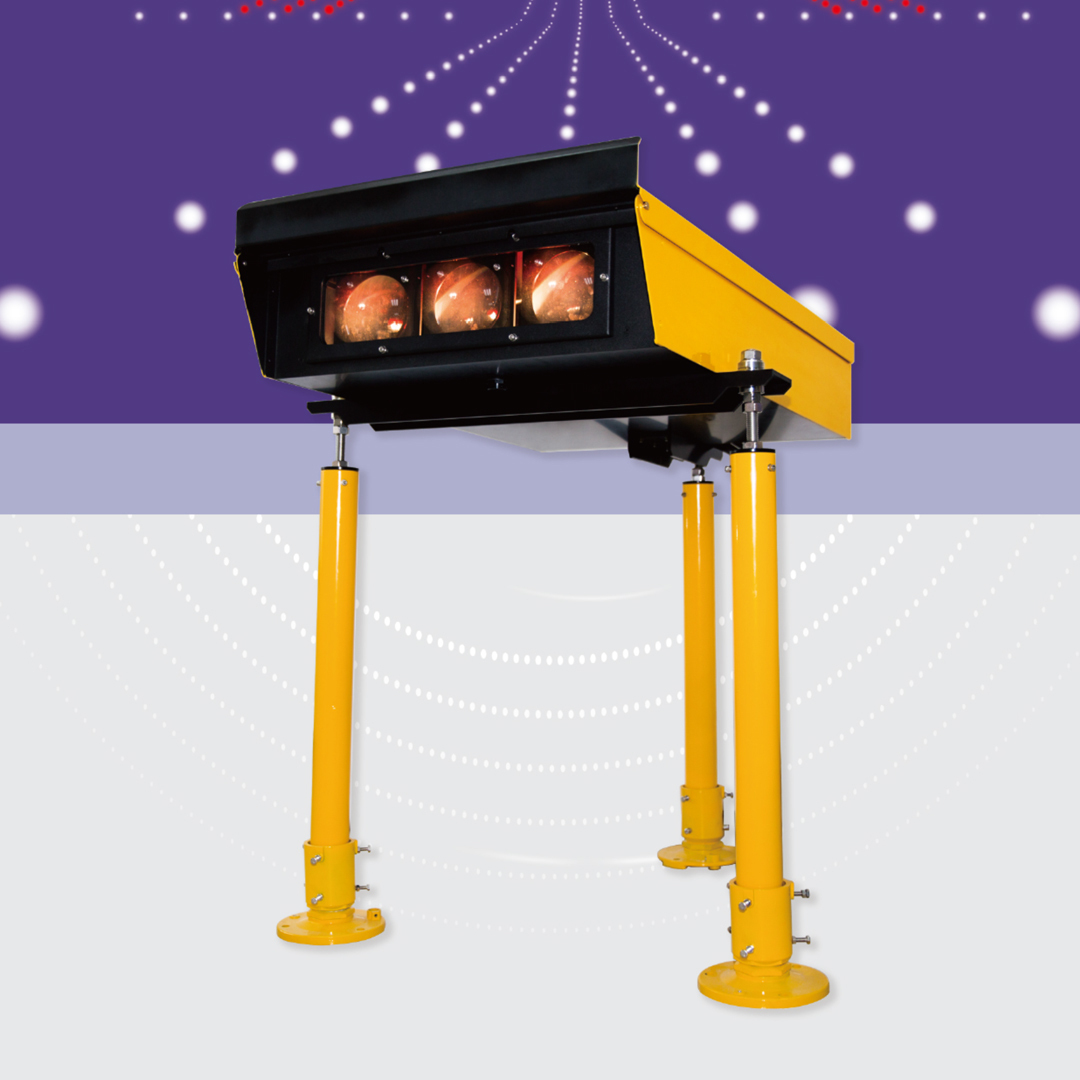

PAPI-B Precision Approach Path Indicator

PAPI-B Precision Approach Path Indicator

Technical Data

Operating Temperature: -55°C~+55°C
Humidity: 0-100%
Protection Class: IP54
Rated Input Current: 6.6A
Connection: Master:2 x FAA L-823 | Slave: 1 x FAA L-823
Emission: IEC 61000-6-4
Power Consumption:  Master: 400W; Slave 300W

DOWNLOAD PDF

Features


  • Aluminum alloy light body with anti-UV coating
  • Stable three-point supporting structure and accurate adjustment of elevation angle
  • Precise positioning of optical compoments and clear transition from white to red
  • High precision electronic inclinometer
  • Optimized thermal design lowers the operating temperature of the electrical driver and increases service life
  • Waterproof breathable valve prevents internal condensation
  • Lamp fault alarm and tilt alarm allow quick troubleshooting

Compliance

  • I.C.A.O. - ANNEX 14 Vol 1
  • E.A.S.A. - CS-ADR-DSN
  • A.E.N.A. - DIN/DSEYN/PPT/020
  • CANADA - TP 312
  • AUSTRALIA - MOS 139
  • C.A.A.C – AC 137-CA-2015-07

Certificates
