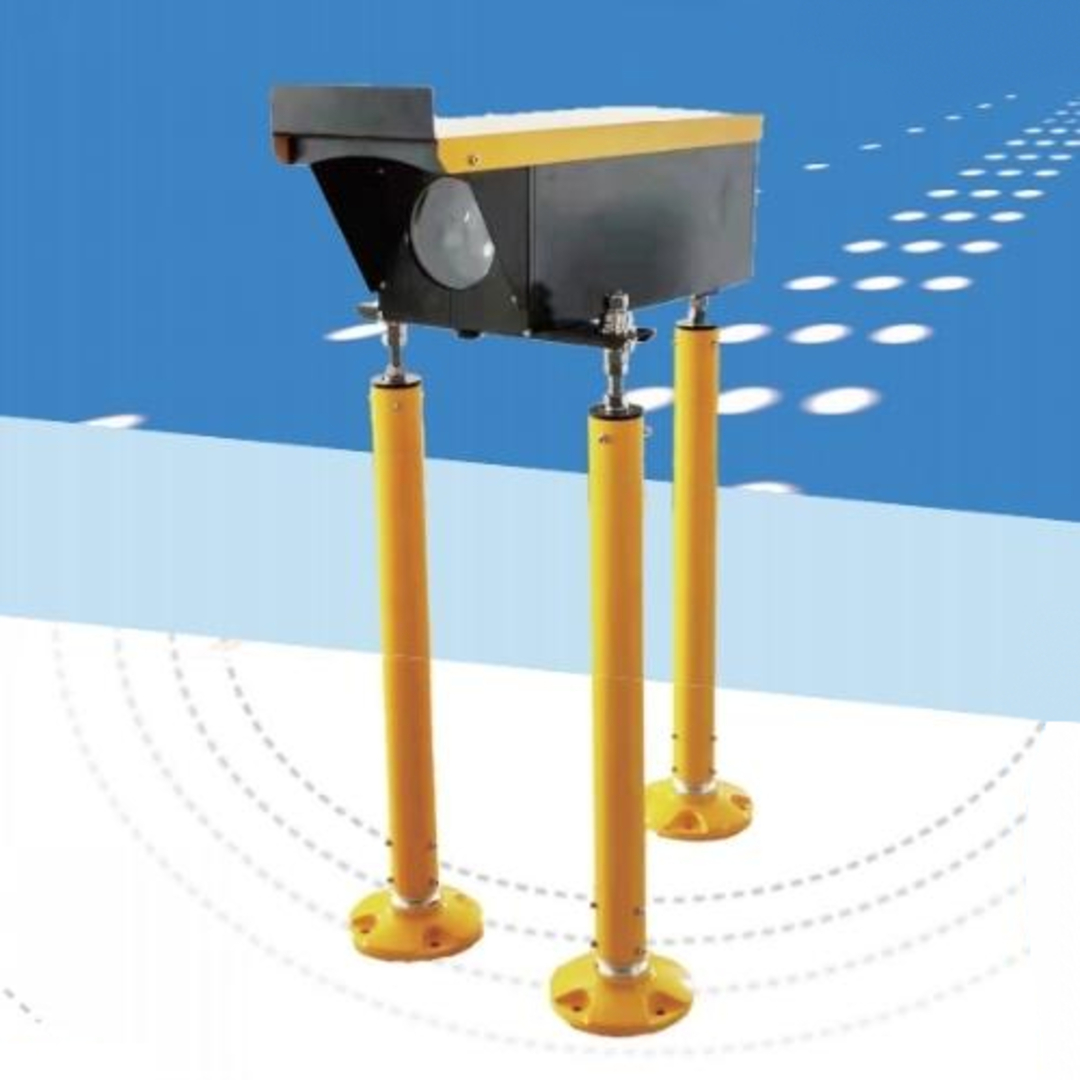

PAPI-B(L) Led Precision Approach Path Indicator
PAPI-B(L) Led Precision Approach Path Indicator
Technical Data
Operating Temperature: -55°C~+55°C
Humidity: 0-100%
Protection Class: IP67
Rated Input Current: 6.6A
Connection: L-823
Emission: IEC 61000-6-4
Power Consumption: 75W
Features
- Low weight aluminum alloy light body, coated with UV resistant material
- Three legs mounting, excellent stability, easy and accurate elevation angle adjustment
- Optimized water-tightness structure, IP 67
- Uniform illuminance and clear transition from white to red
- Heated front glass, effectively prevent the formation of condensation and ice on the glass surface
- Built-in high-precision electronic tilt sensor
- Standard wireless and optional wired communication between PAPI units
- Optional Monitoring interface for communication with ALCMS
- A digital display combined with a touchpad for convenient observation of angles and easy setting of arameters
Compliance
- I.C.A.O. - ANNEX 14 Vol 1
- E.A.S.A. - CS-ADR-DSN
- F.A.A. - AC 150/5345-46 - EB No. 67
- A.E.N.A. - DIN/DSEYN/PPT/020
- CANADA - TP 312
- AUSTRALIA - MOS 139
- C.A.A.C - AC-137-CA-2015-07
- C.A.A.C - AC-137-CA2015-01-R1
