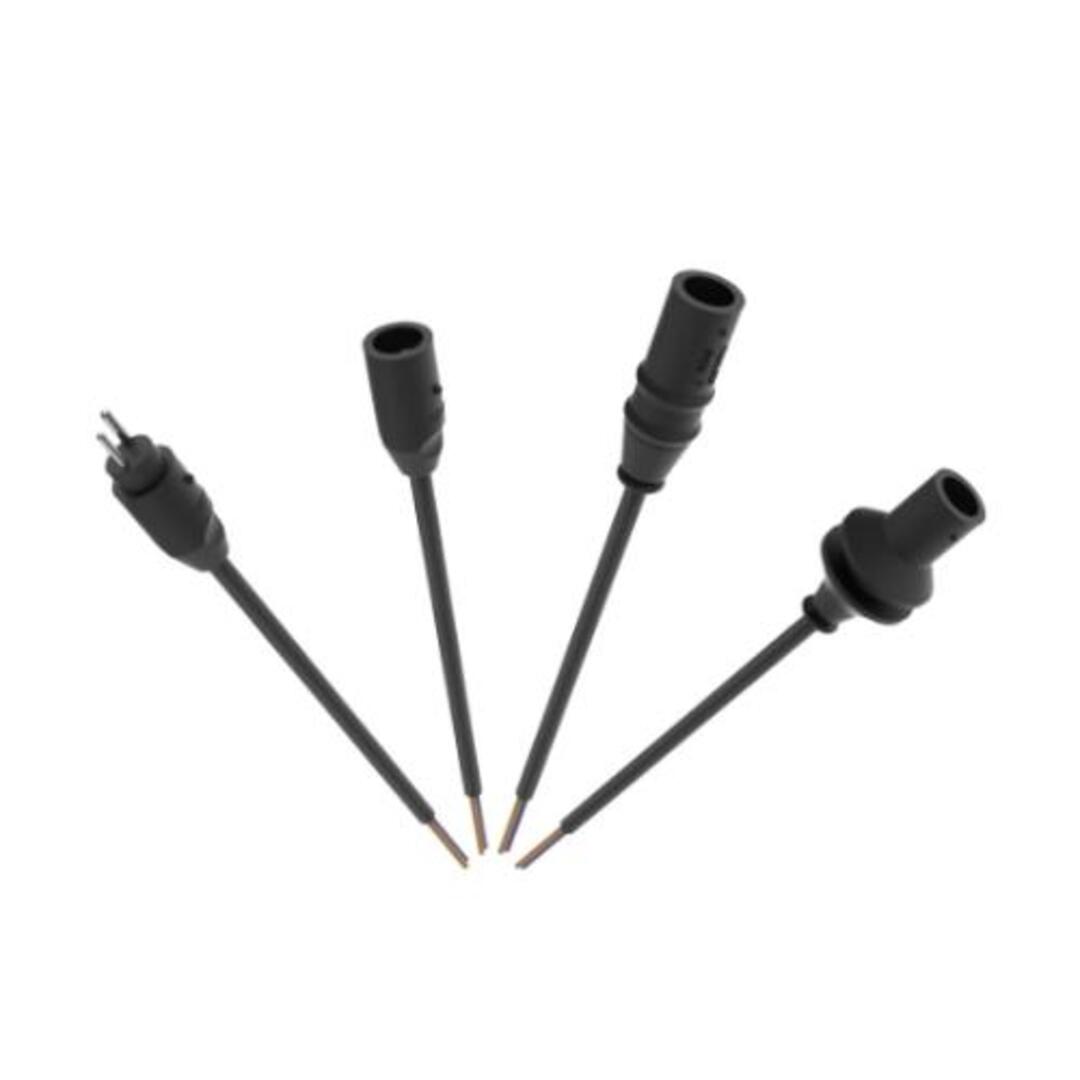

Prefabricated Secondary Leads for Two Core Cables KDC501, -502, KDC507-508
Prefabricated Secondary Leads for Two Core Cables KDC501, -502, KDC507-508
FAA AC5345-26, L-823, Class A, Type I & II
Technical Data
- Two core cable
- Dual insulation: EPR-insulated & TPE-sheathed
- Core insulation: special EPR compound
- Outer sheath: halogen free TPR compound (IEC 60752-2/EN 50267-2-3)
- Copper conductors, Class 5 (IEC 60228)
- Size options: 1.5 mm2, 2.5 mm2, 4 mm2
- Nominal voltage: 600 V
- Temperature range: -40 to +120°C (-40 to 248 ° F)
- Short term short circuit temperature resistance 3005C (570-F)
- Bending radius: 5D
- FAA L-824 certified
- Fulfills specifications: MIL-C-3432, MIL-C-4921 S ICEA S-66-524
Features
KDC secondary leads are used for connecting the transformer
and the secondary circuit. KDC secondary leads with double
insulated two core cable provides unique dielectric strength
for secondary circuit, since cable\'s outer sheath and all
connections are made from same thermoplastic elastomer
(TPE). Secondary leads are delivered either in prefabricated
leads or in extension cords. Secondary leads are available with
various cable diameter and with frangible break-away feature.
KDC secondary leads are FAA certified and fulfill specifications
MIL-C-3432, MIL-C-4921 and ICEA S-66-524.
