Secondary Connector Kits KD501 & KD502

Secondary Connector Kits KD501 & KD502

FAA AC 5345-26, L-823, Class B, Style 5 & 12

Technical Data

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Nominal rating: 20 A and 600 V
  • Wire diameter 8,5 - 18 mm (0.334 - 0.708 inches)
  • Conductor size 1,5 - 6 mm2 (16 - 10/8 AWG)
  • ROHS compliance with EU directive NO2002/95/EC

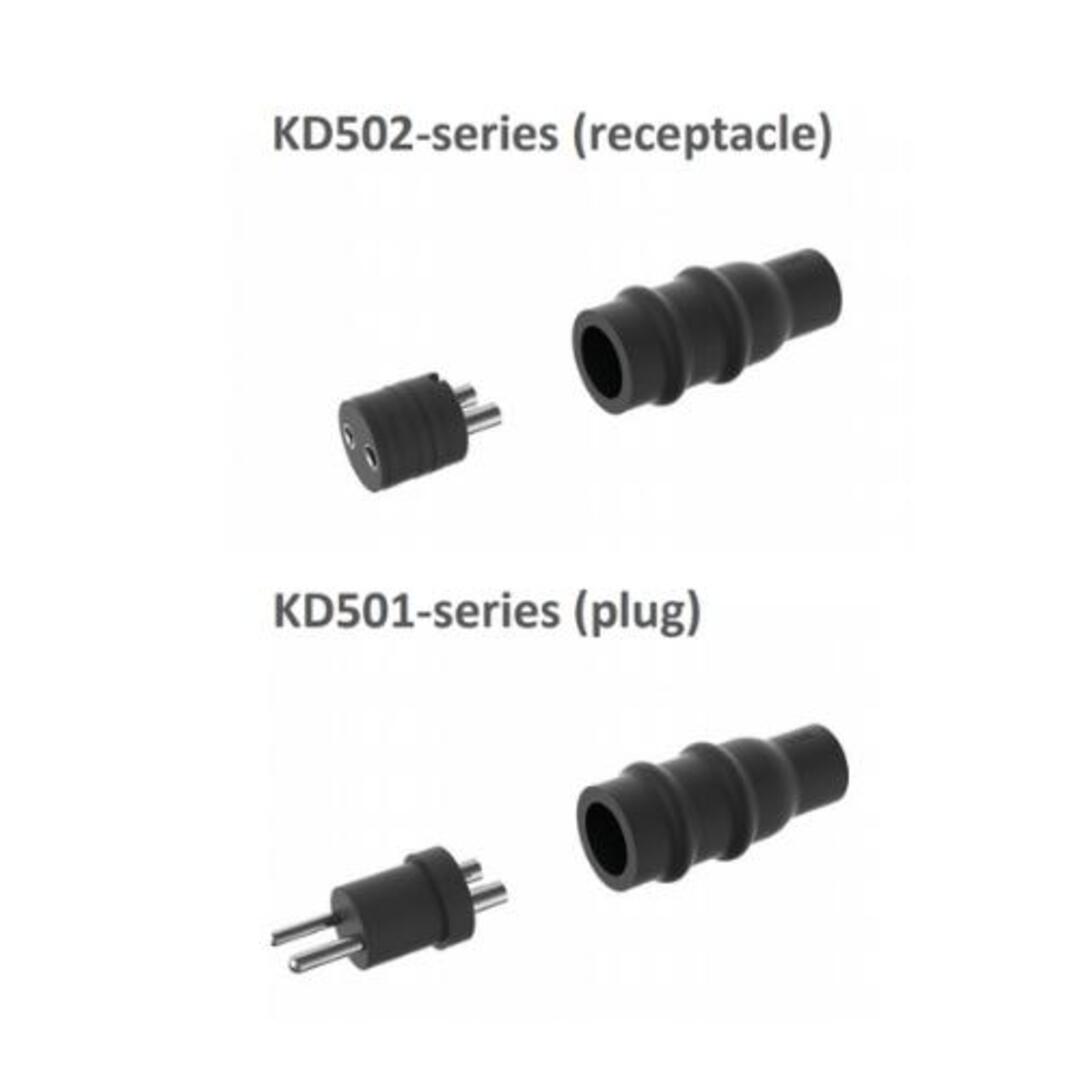

KD501 (Plug) and KD502 (Receptacle) are packed and delivered in kit including all the necessary parts for making the assembly on secondary cable. Each secondary connector kit contains components for a plug or a receptacle.

DOWNLOAD PDF

Features

KD501/502 have been the industry requirement for over 30 years. They are designed for a fast-and-easy watertight connection between the secondary cable and the series isolating transformer. This waterproof silicon filled connector is used with double insulated two core cables, 3-pin also available. Connector is fast to install, approx. 1 min. KD501/502 connectors are FAA certified.

Certificates


KD SECONDARY CONNECTOR
