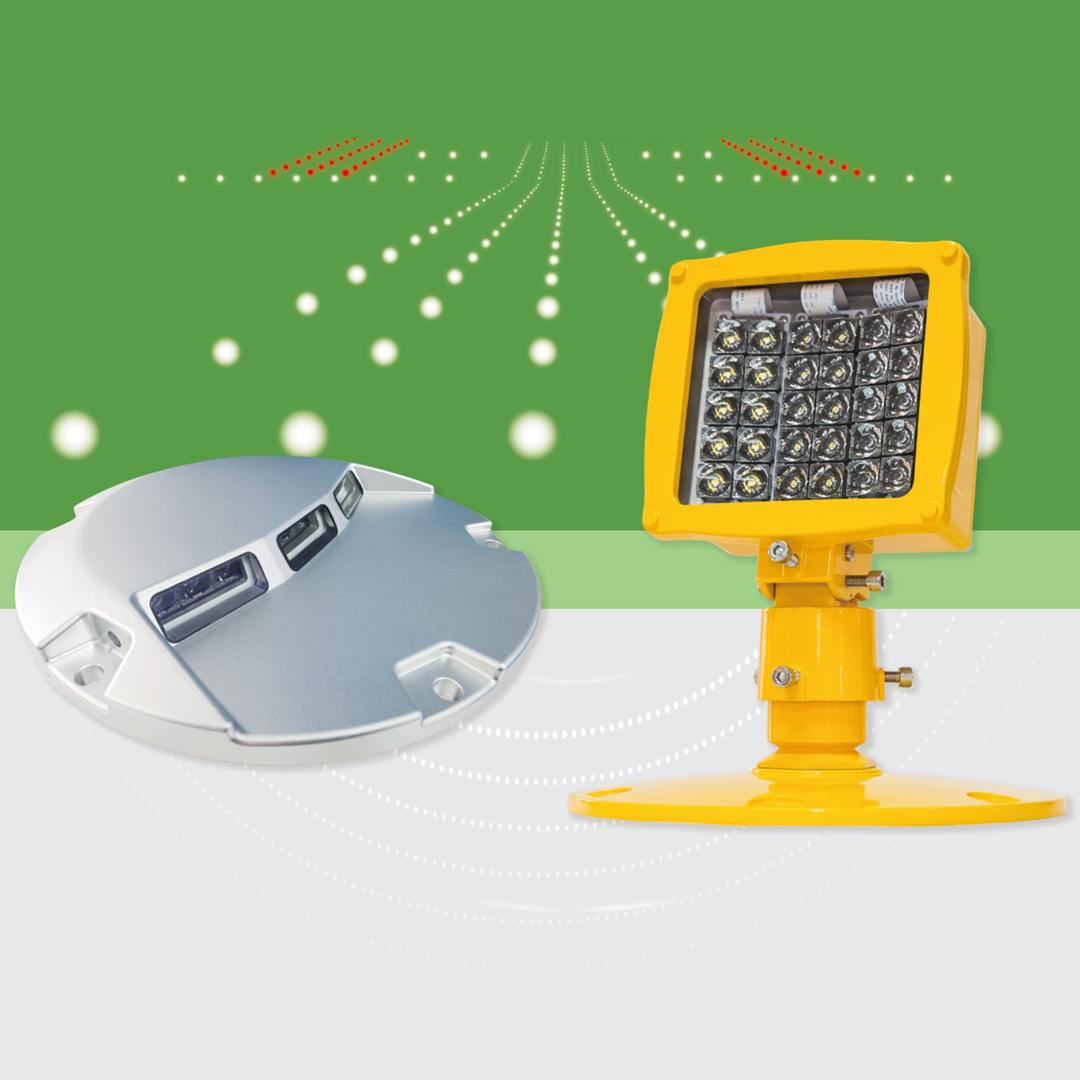

SFL-2100(L) LED Flash Lighting System
SFL-2100(L) LED Flash Lighting System
Sequenced Flashing Lights | Runway Threshold Identification Lights
Technical Data
MASTER CONTROL CABINET
Operating Temperature: -30°C~+55°C
Humidity: 10%~95%
Protection Class: IP21
Input Power: AC220/230V±10%-50Hz
Remote Control: CAN, Modbus and Multiwire
Power Consumption (nominal): 18W
Features
- CAN fieldbus with strong anti-interference ability effectively preventing flash errors and false alarms
- Wide range of input voltage for Flasher Control Unit
- Comprehensive lightning and overvoltage protections
- Flashing maintained despite communication interruption
- 7 inches full color touch screen provides rich information
- CAT l/ll/lll working mode selectable from the user-friendly LCD Human Machine Interface
- Master Control Cabinet equipped with multiple types of communication interfaces
Compliance
- I.C.A.O. - ANNEX 14 Vol 1
- E.A.S.A. - CS-ADR-DSN
- I.E.C. - TS 61827
- F.A.A. - AC 150/5345-51 - EB NO. 67 - E-2628
- N.A.T.O. - STANAG 3316
- CANADA - TP 312
- AUSTRALIA - MOS 139
- C.A.A.C – AC 137-CA-2015-09
