12″ Shallow base B-12S
12″ Shallow base B-12S

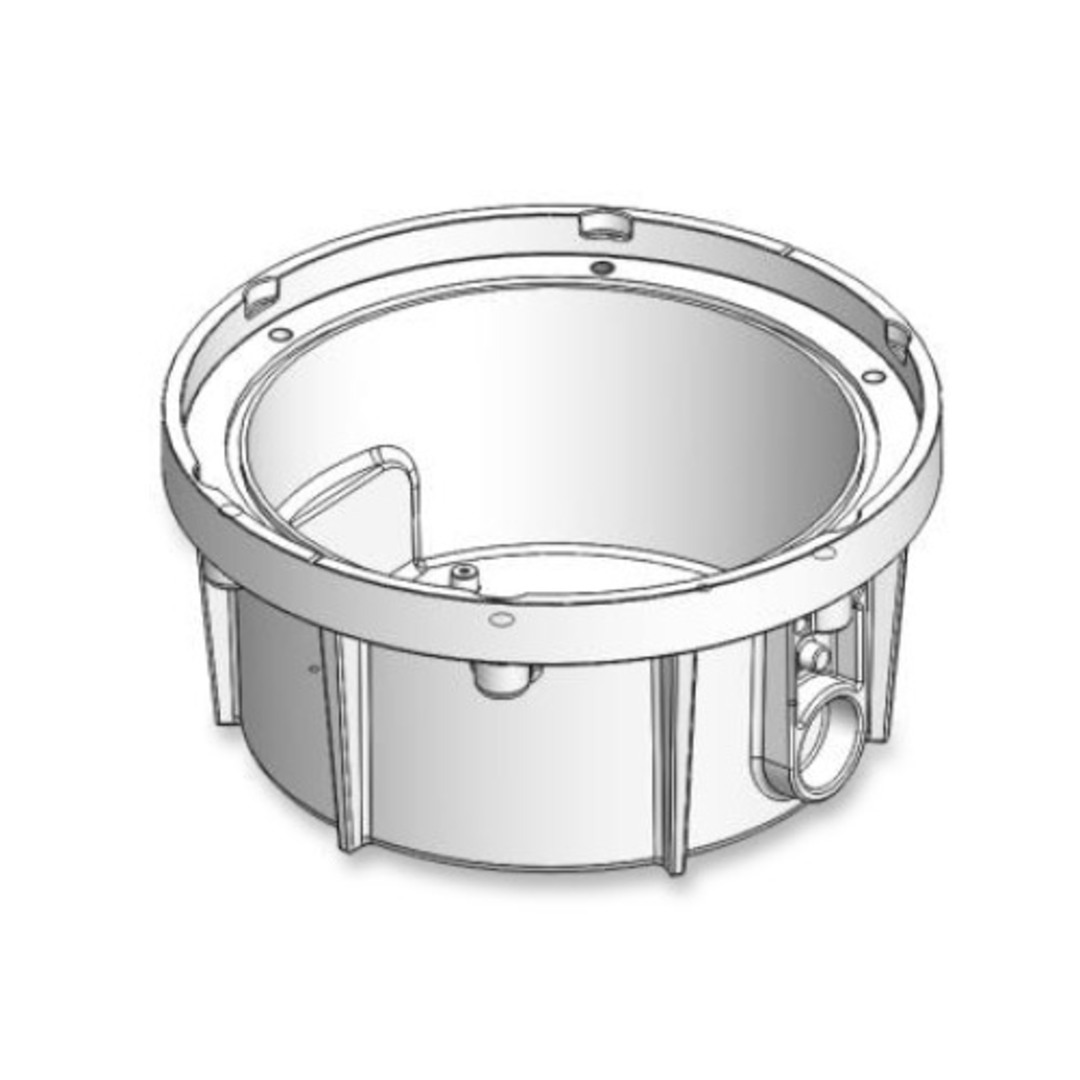

The shallow base is designed to mount a 12″ inset light into a taxiway or runway pavement location.
Technical Data
Static Load: ＞25 t
Net weight: 5 kg
Gross Weight: 5.5 kg
Features
- Corrosion proof cast aluminum alloy
- Black electrophoretic coating
- Optional side entry and bottom entry
- Optional one or two side entries for the cable
- M10 stainless steel bolts and lock washers
- Equipped with 1×O-ring gasket for watertight
- Earth point provided
Compliance with standards
- F.A.A. - AC 150/5345-46
- F.A.A. - AC 150/5345-42
- I.E.C. - TS 61827
