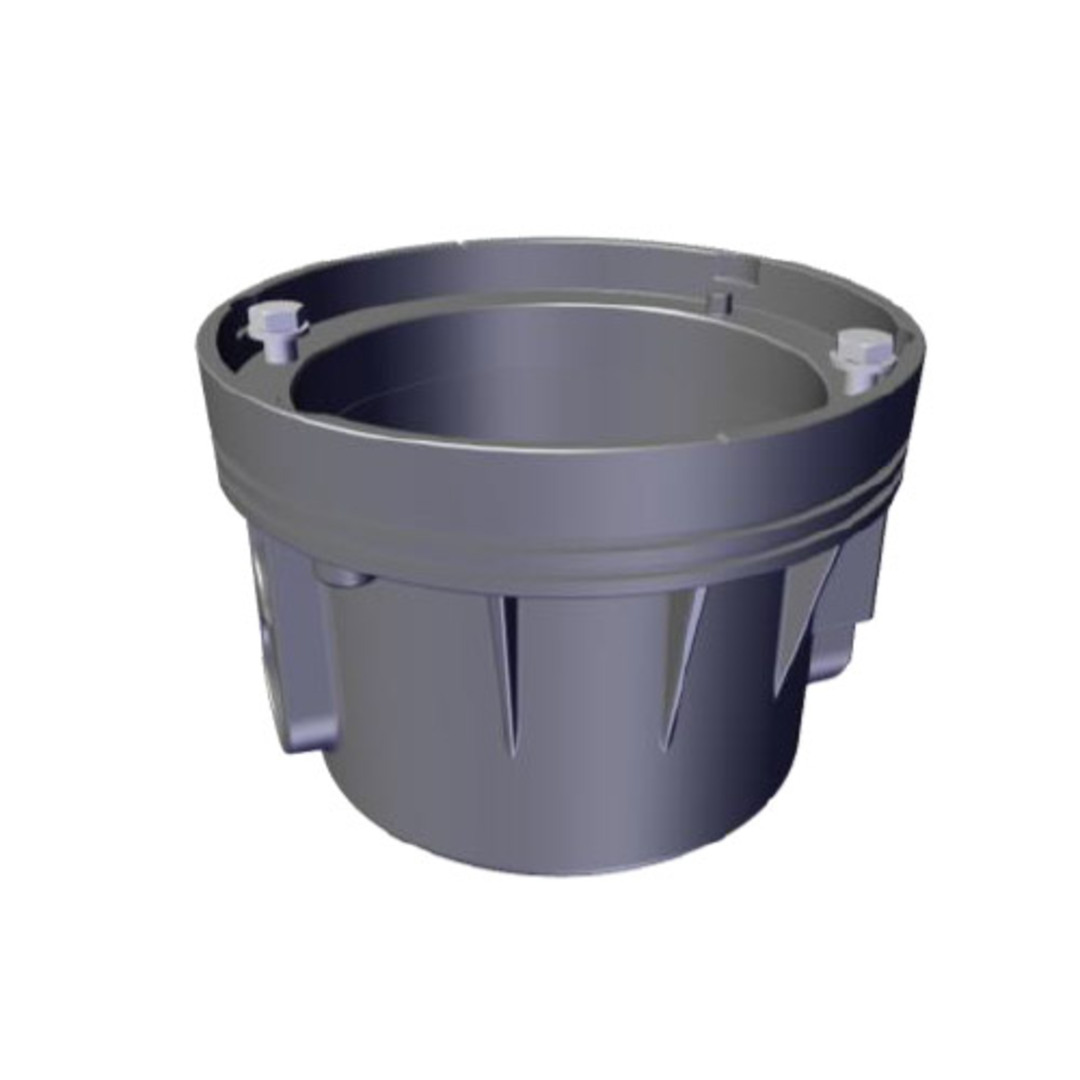

BS-8 Series 8″ Shallow base
BS-8 Series 8″ Shallow base
The shallow base is designed to mount an 8″ inset light into a taxiway or runway pavement location
Technical Data
Static Load: ＞25 t
Net weight: 2.5 kg
Gross Weight: 2.8kg
Features
- Anodized surface treatment
- Optional side entry and bottom entry
- Optional one or two side entries for the cable
- M10 stainless steel bolts and lock washers
- Earth point provided
Compliance with standards
- F.A.A. - AC 150/5345-46
- F.A.A. - AC 150/5345-42
- I.E.C. - TS 61827
