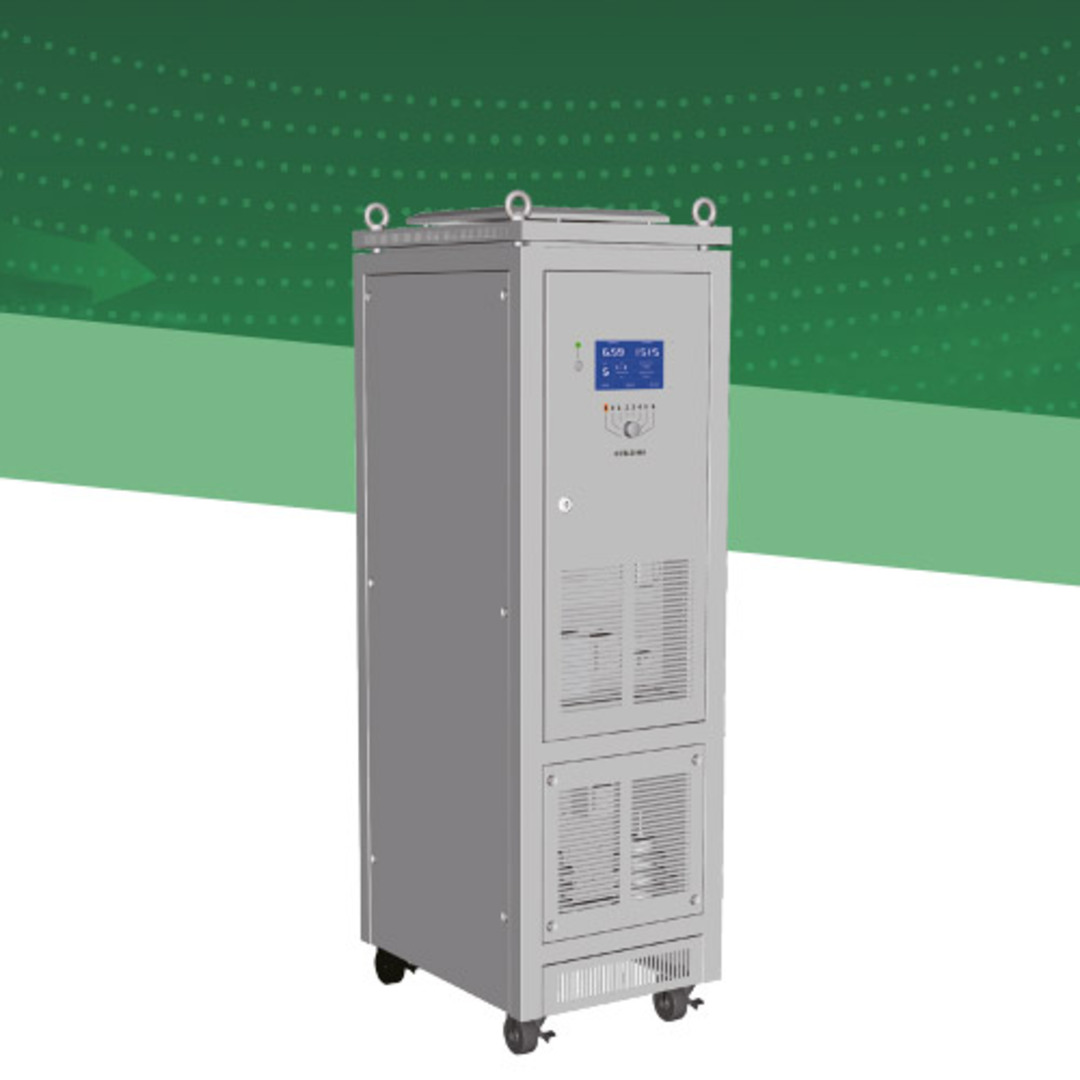

CCR-2100S Constant Current Regulator COMPACT IGBT TYPE

Technical Data

Operating Temperature: -30°C~+55 °C

Humidity: 10%~95%

Protection Class: IP21 Input

Input Voltage • AC 220/230/380/400V±10% 50/60Hz

Emission: IEC 61000-6-4

DOWNLOAD PDF

Features

Tested by BV and proved in conformity with IEC 61822
EU CE certified
IGBT high frequency PWM and pure sine wave output
32-bit high speed processor providing microsecond speed in transaction
Up to 6 brightness steps, user adjustable output current
1000M high precision on-line insulation resistance measurement
Lamp fault detection provides accurate detection of burnt lamps
Natural cooling and no noise
Power factor exceeding 0.99
Perfectly suitable for loads of various characteristics
Effectively increase life expectancy of light sources
7 inches full color touch screen provides rich information
Flexible parameter settings
Lightning protection at both input and output sides
Comprehensive over current and over voltage protection
Various types of remote control interfaces
Choice of 100+ airports worldwide

Compliance

I.C.A.O - DOC 9157 ADM Part 5
E.A.S.A. - CS-ADR-DSN
I.E.C. - 61822 - 61820-3-2
F.A.A. - AC 150/5345-10
A.E.N.A. - DIN/DSEYN/PPT/002
C.A.A.C. - MH/T 6010
